GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO

GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
GEN 4 5.0L COYOTE POWER MODULE WITH 10 SPEED AUTO
M-9000-PMCA4
Retail
$23,100.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Complete Modern Powertrain Solution for Any Ford!

  • NOW AVAILABLE WITH 2024 Mustang GT 5.0L 480 HP Coyote Engine!
  • Mustang 10R80 Automatic Transmission
  • Complete Engine Controller and Wiring Harness (Control Pack)

Next generation 5.0L power all in one complete powertrain kit. The crew at Ford Performance have spec'd out a kit to simplify the swap of the newest, most innovative 5.0L Coyote engine into just about any Ford vehicle. The Coyote Power Module teams the Mustang GT 480 horsepower 5.0L Coyote V8 with a state of the art 10 speed automatic transmission - and all the electronics and hardware to finish the installation. The engine features advances like Direct and Port Fuel Injection, Twin Independent Variable Camshaft Timing, and a lightweight plasma transferred wire arc spray aluminum engine block. Coyote Power Module simplifies both the shopping and build experience by kitting up the right parts that are matched to deliver potent performance with civilized drivability.  The engine Control Pack is truly plug and play and simplifies conversions to a modern electronically fuel injected V8 high performance engine.

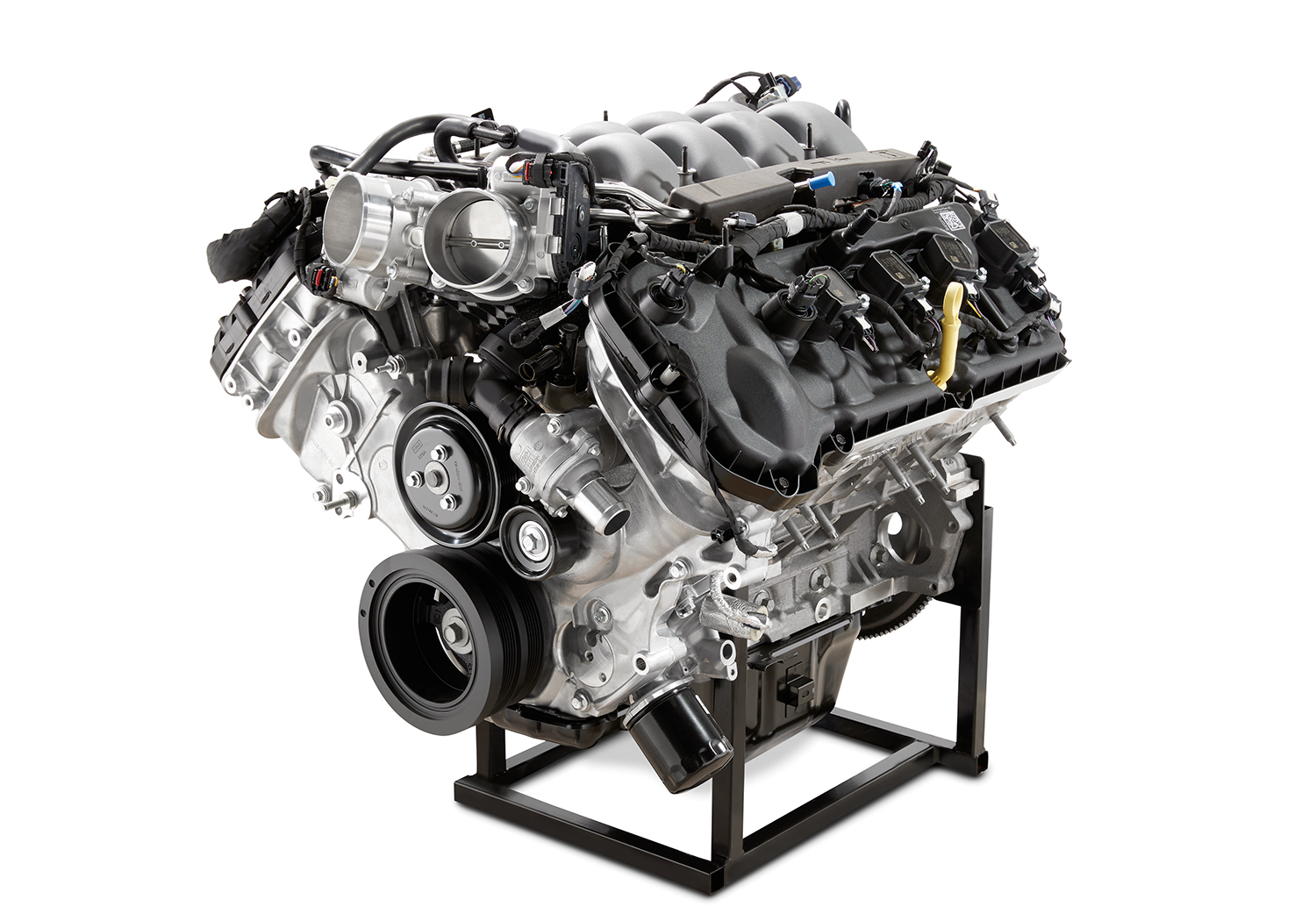

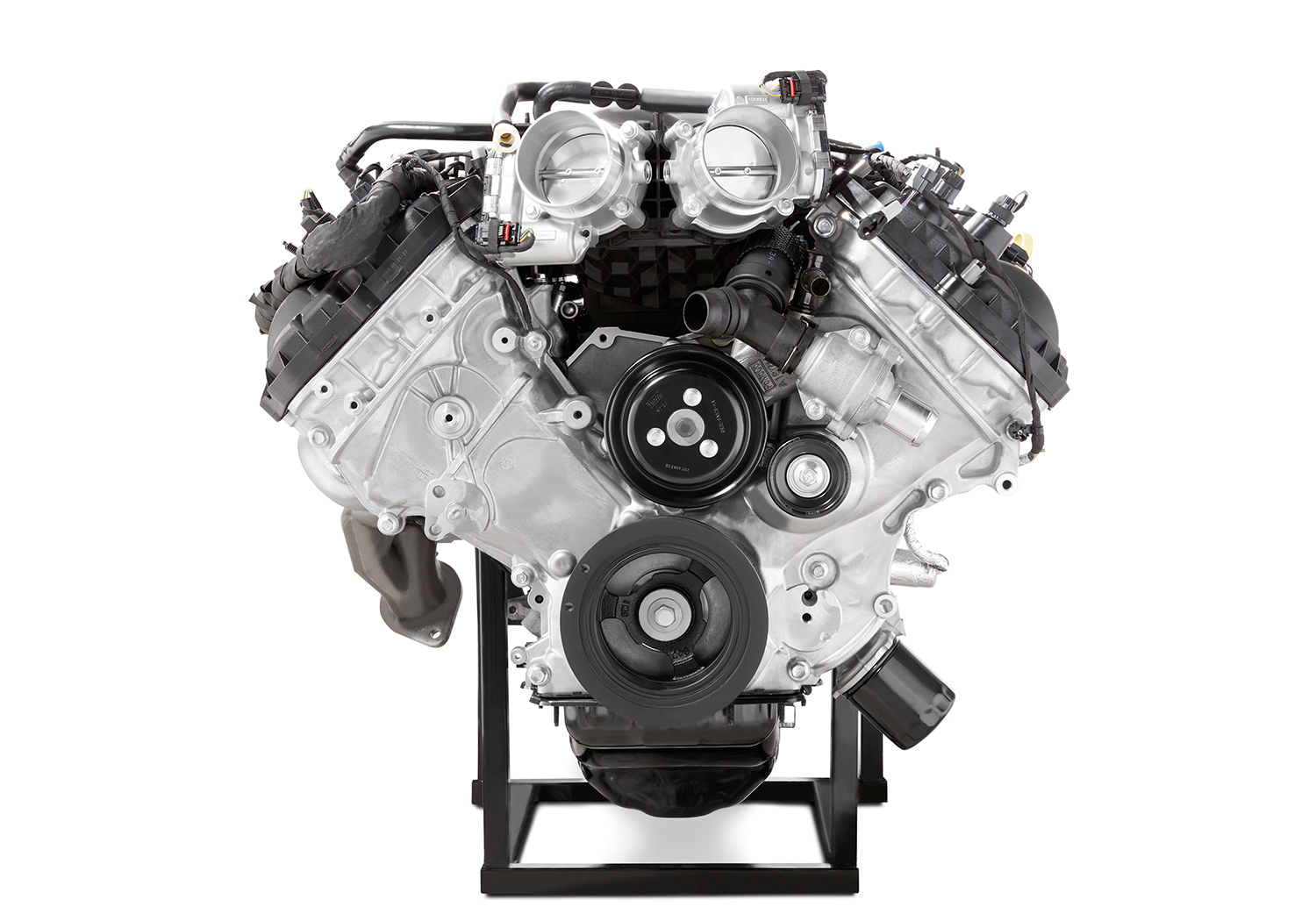

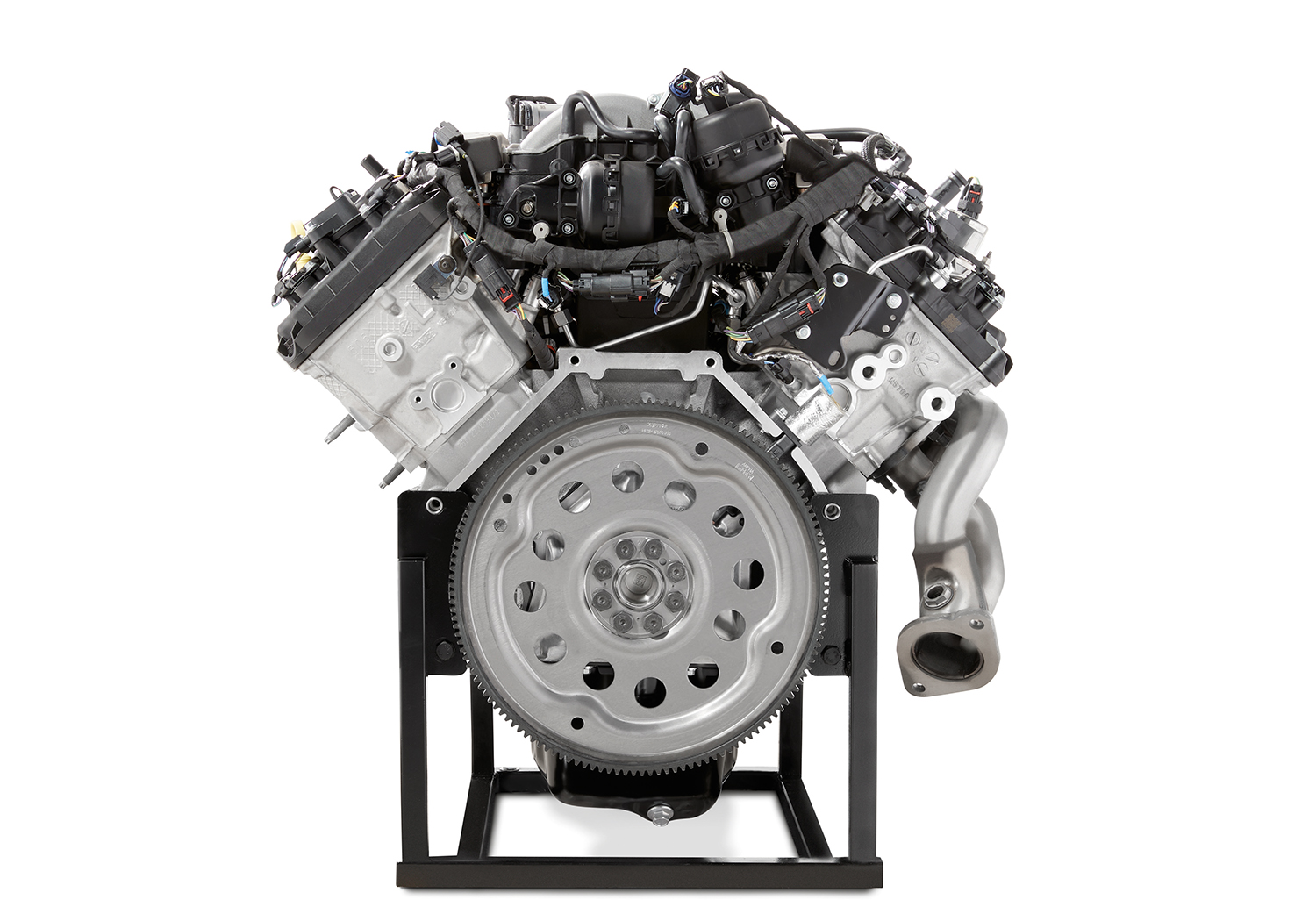

  • 2024 Mustang GT 5.0L Coyote Engine - M-6007-M50D
  • 480 Horsepower @ 7,150 rpm
  • 415 lb.-ft. Torque @ 4,900 rpm
  • 12.0:1 Compression ratio
  • Aluminum block
  • Boss 302 Alternator Kit – M-8600-M50BALT
  • M-11000-C50A starter and Starter Index Plate
  • M-6017-M50DAUTO Control Pack PCM and installation kit - air boxes, throttle pedal, UEGO sensors, power distribution box
  • Factory Mustang GT 10R80 10 speed automatic transmission, flexplate, and torque convertor
  • Factory Mustang GT 10R80 shifter
  • Factory Mustang GT U-joint companion flange
  • Factory Mustang GT transmission cooler and lines
  • Runs on pump gas
  • Installation hardware
  •      Coyote Crate Engine Technical Reference Guide
  •      Click here for engine exterior dimensions
    • Part Type
    Engine: Complete Engines
    Warranty Availability
    Not Available
    Ships In
    2 Boxes
    Box 1 Dimensions
    42" x 44" x 42"
    Box 1 Weight
    752 lb(s)
    Box 2 Dimensions
    42" x 38" x 42"
    Box 2 Weight
    752 lb(s)
    UPC Code
    756122024867
    Country of Origin
    United States
