GEN 4X 5.0L MUSTANG COYOTE 460HP CRATE ENGINE
M-6007-M50H
Retail
$11,500.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
ATTENTION:
This part is intended as a replacement part for use only in the application(s)
identified in the product description. Installation of this part in a vehicle for
which it is not intended may violate U.S. and Canadian laws and regulations related
to motor vehicle emissions.

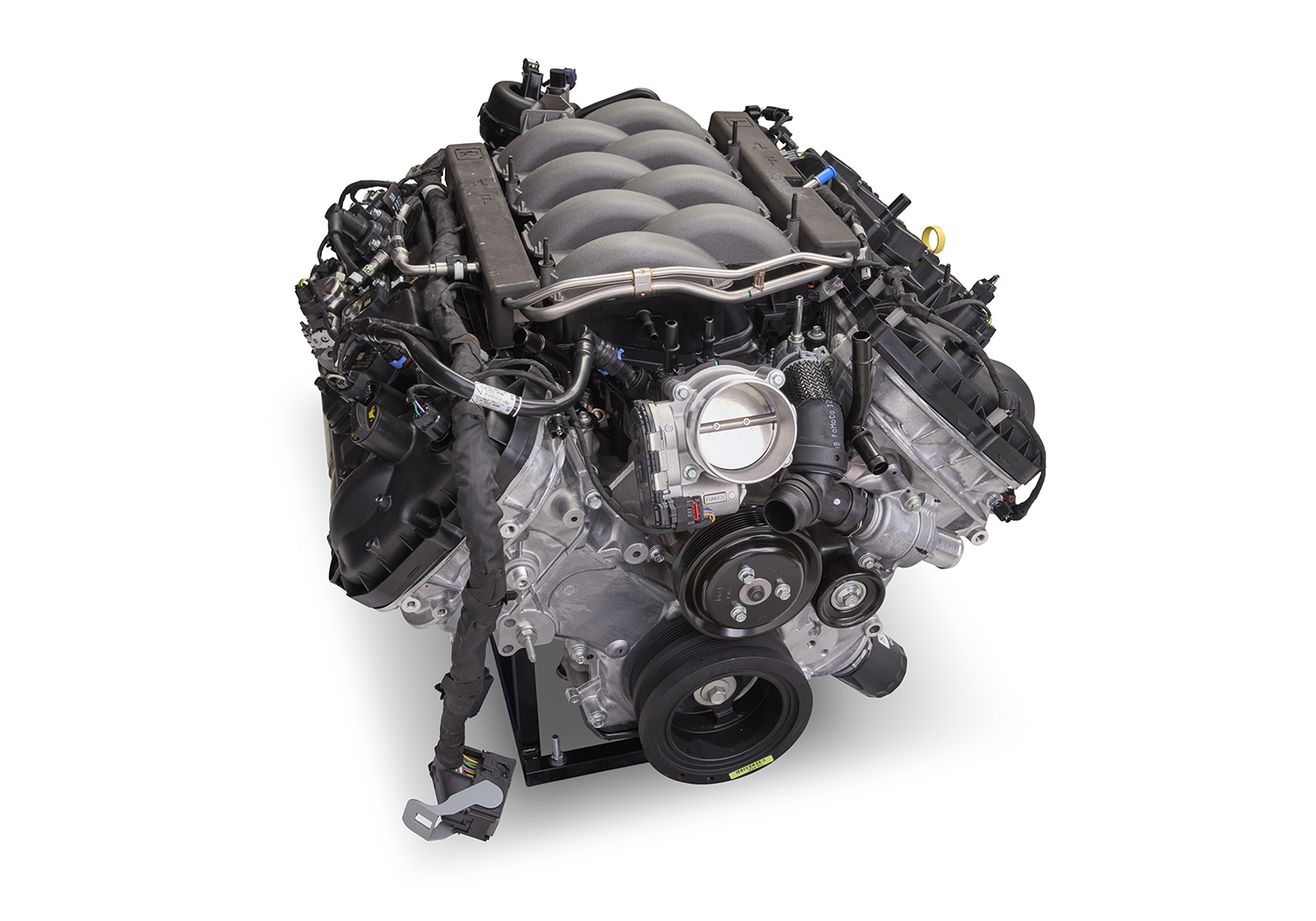

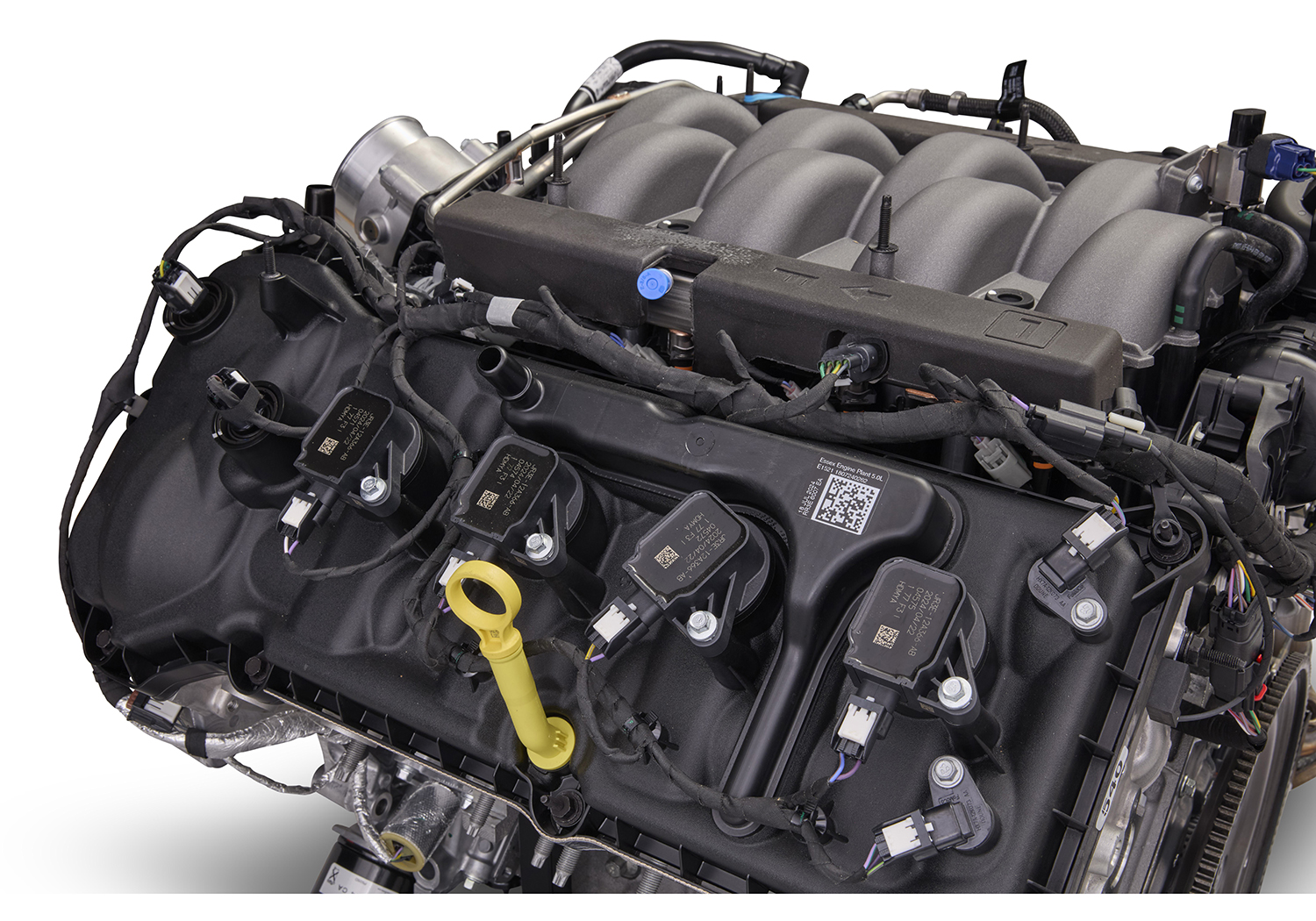

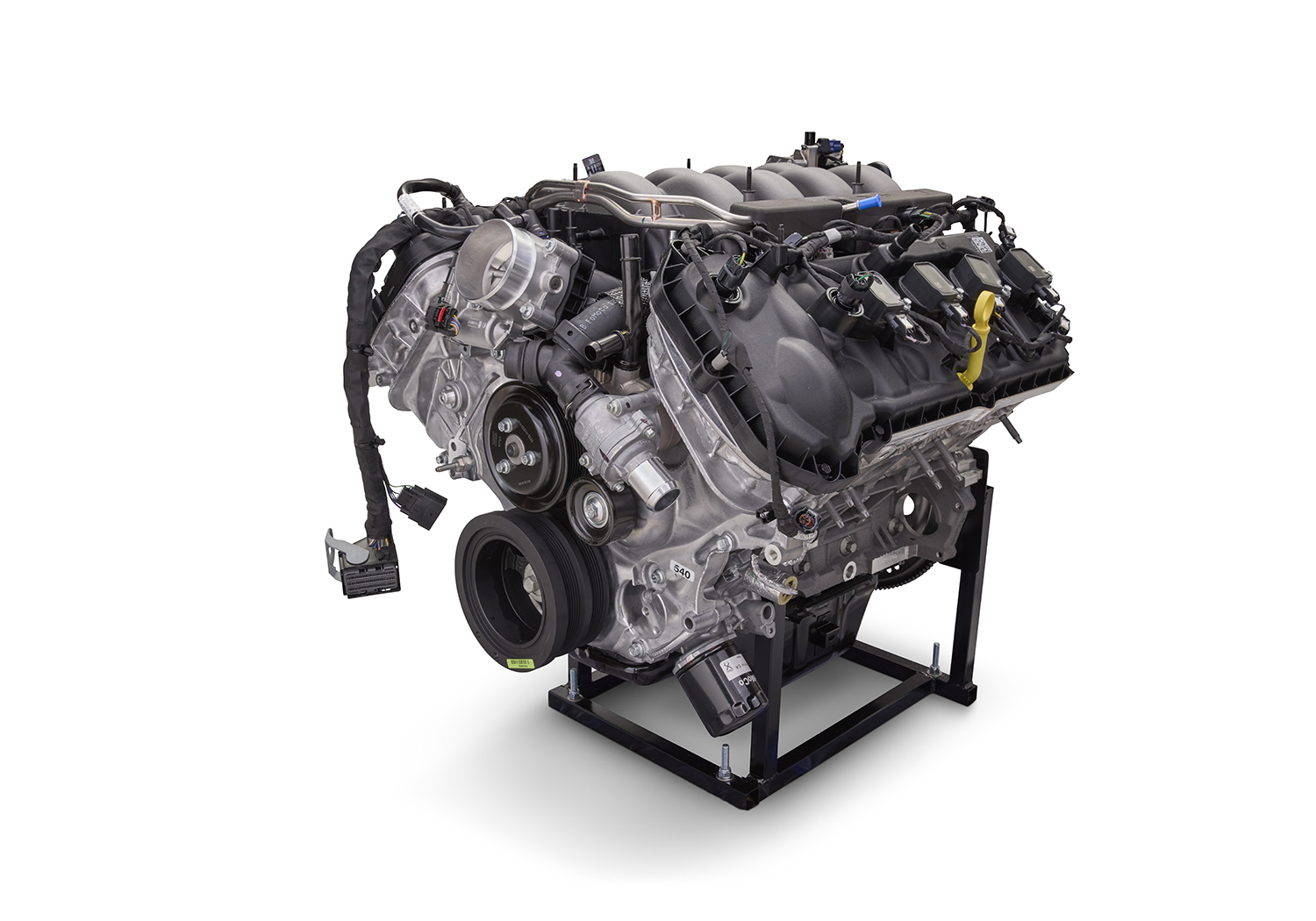

The Ford Performance all-aluminum 5.0L Coyote Gen 4X crate engine is a modern 5.0L 32-valve DOHC V-8 that utilizes advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow aluminum cylinder heads, and 12:1 compression to deliver 460 horsepower and 420 lb.-ft. of torque (with premium fuel). The aluminum cylinder block features plasma transferred arc spray in liners, cross-bolted main bearing caps, and thick main bearing bulkheads for strength. The Gen 4X 5.0L Coyote features a single 80mm throttle body for easier packaging in various applications.
- 460 hp and 420 lb.-ft. of torque
- 12:1 compression ratio
- Hypereutectic aluminum pistons
- Sintered steel connecting rods as used on the Boss 302 Mustang
- Forged steel crankshaft
- Single 80 mm "drive-by-wire" throttle body
- 9.5 quart steel oil pan
- Composite lightweight intake manifold

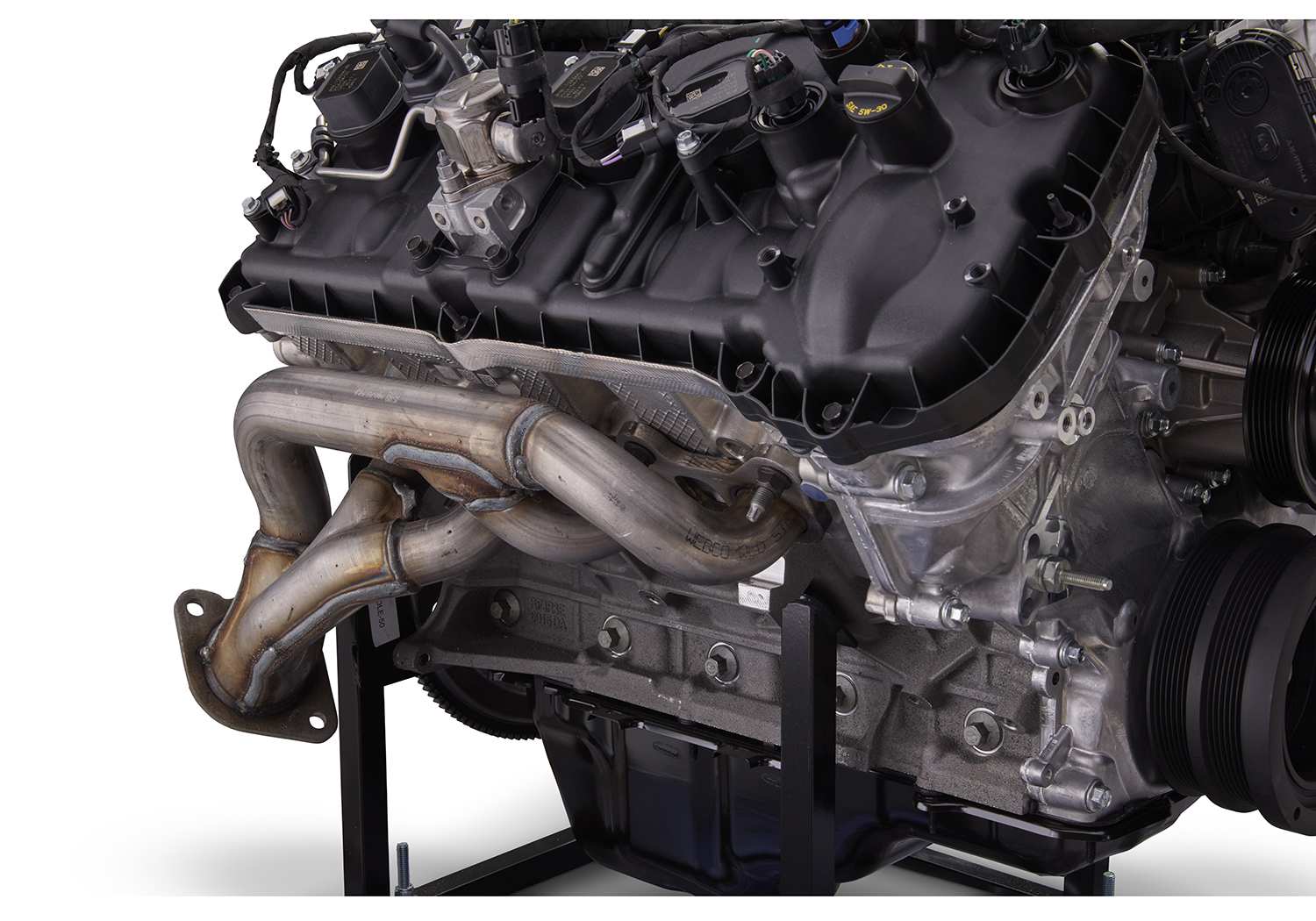

- Mustang GT 409 stainless steel exhaust manifold RIGHT SIDE ONLY
- Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
- For control packs see M-6017-M50HM and M-6017-M50HA
- For alternator kit see M-8600-M50BALT, M-8600-M50ALTC or M-8600-M50ALTA

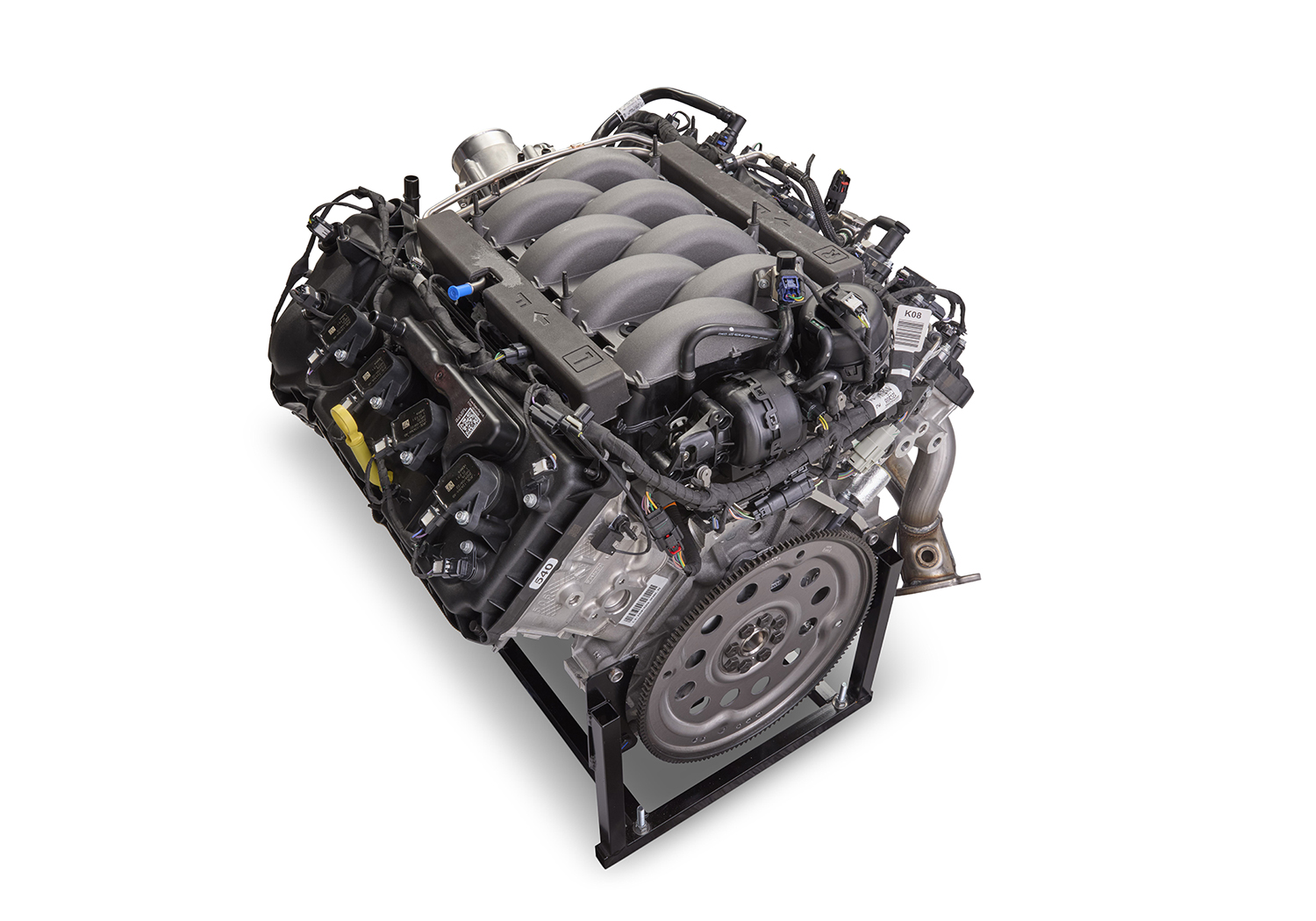

- 10R80 flexplate included
- For manual transmission flywheel please see M-6375-M50
- Engine weight: 445 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***
Part Type
Engine: Complete Engines
Warranty Availability
Not Available
UPC Code
756122022214
Country of Origin
Multiple Cntry Mfg. Locations
