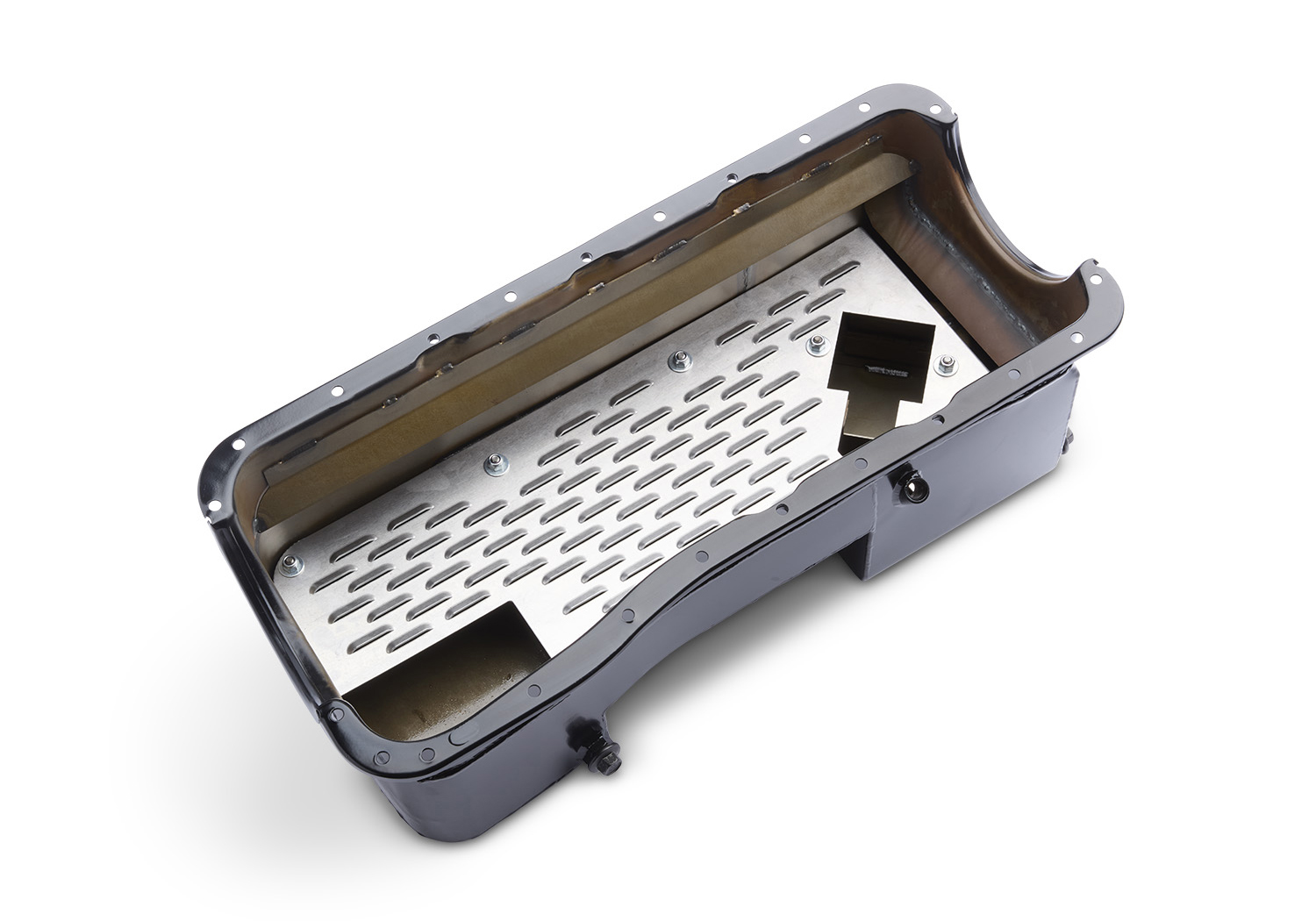

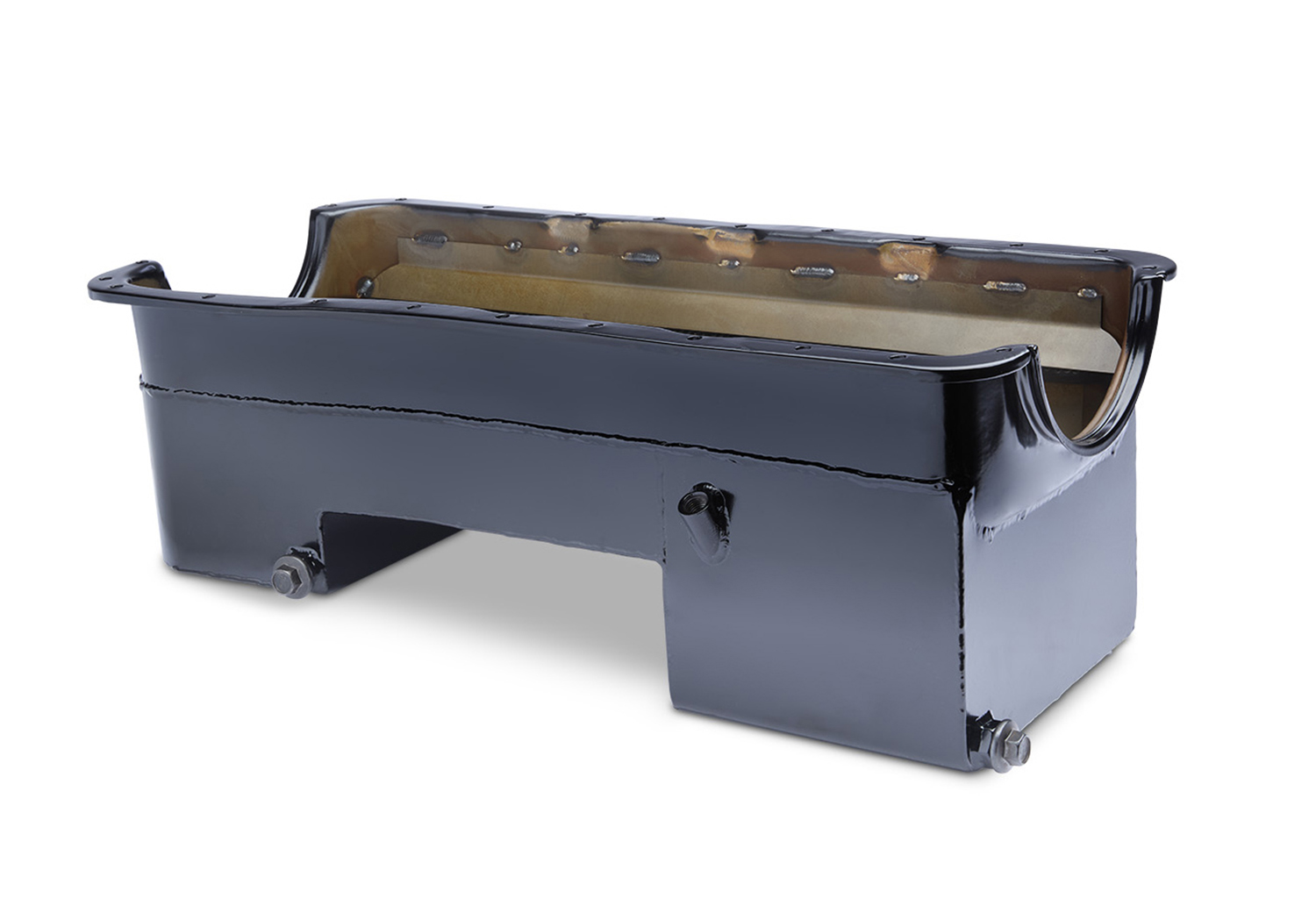

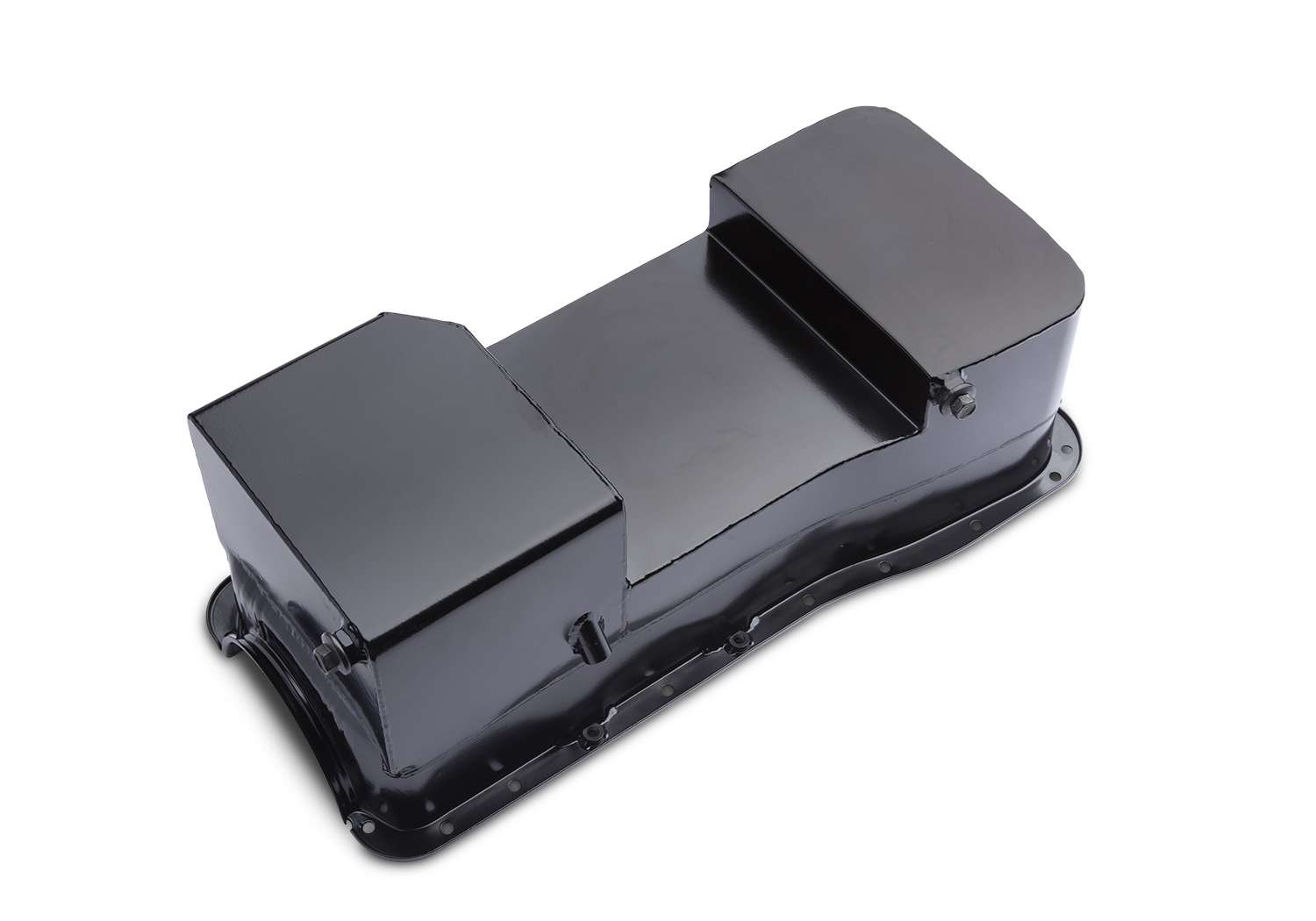

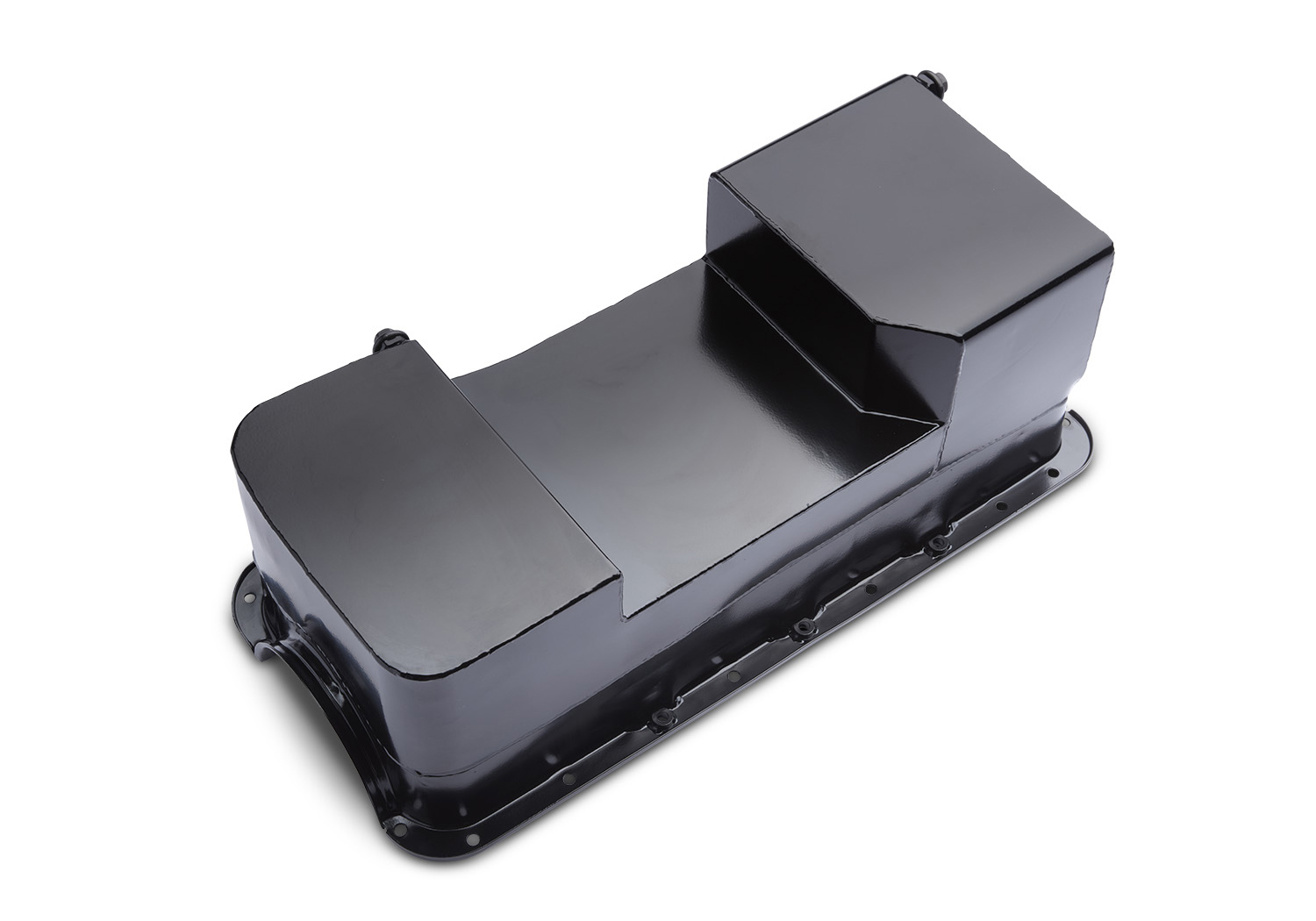

460 DEEP REAR SUMP OIL PAN
M-6675-DRS460
Retail
$965.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Elevate your engine's performance with the Ford Performance 460 Deep Rear Sump Oil Pan. Crafted for power and reliability, its advanced design ensures superior oil control, keeping your engine in peak condition even during intense driving.
Designed by Ford Performance, the M-6675-DRS460 oil pan is constructed to deliver power and durability.
- Fits 429/460 and Ford Performance M-6010-A460, M-6010-A460X, and M-6010-A460XBB blocks
- 7 quart capacity
- Full length scraper to direct oil away from the crankshaft
- Full length bolt in louvered windage tray to control oil
- Baffling and trap doors in the sump to keep the pickup submerged during performance driving
- Semi-gloss black powder coat finish
- Laser cut and TIG welded in precision fixtures for consistent OEM level fit
- Use pickup M-6622-DRS460 Requires rear sump truck oil pump.
- Accepts STD and HV oil pumps
Part Type
Engine: Oil Pumps/Pans
Warranty Availability
Package Dimensions
13" x 11" x 26"
Package Weight
19.9 lb(s)
UPC Code
756122130445
Country of Origin
Canada
